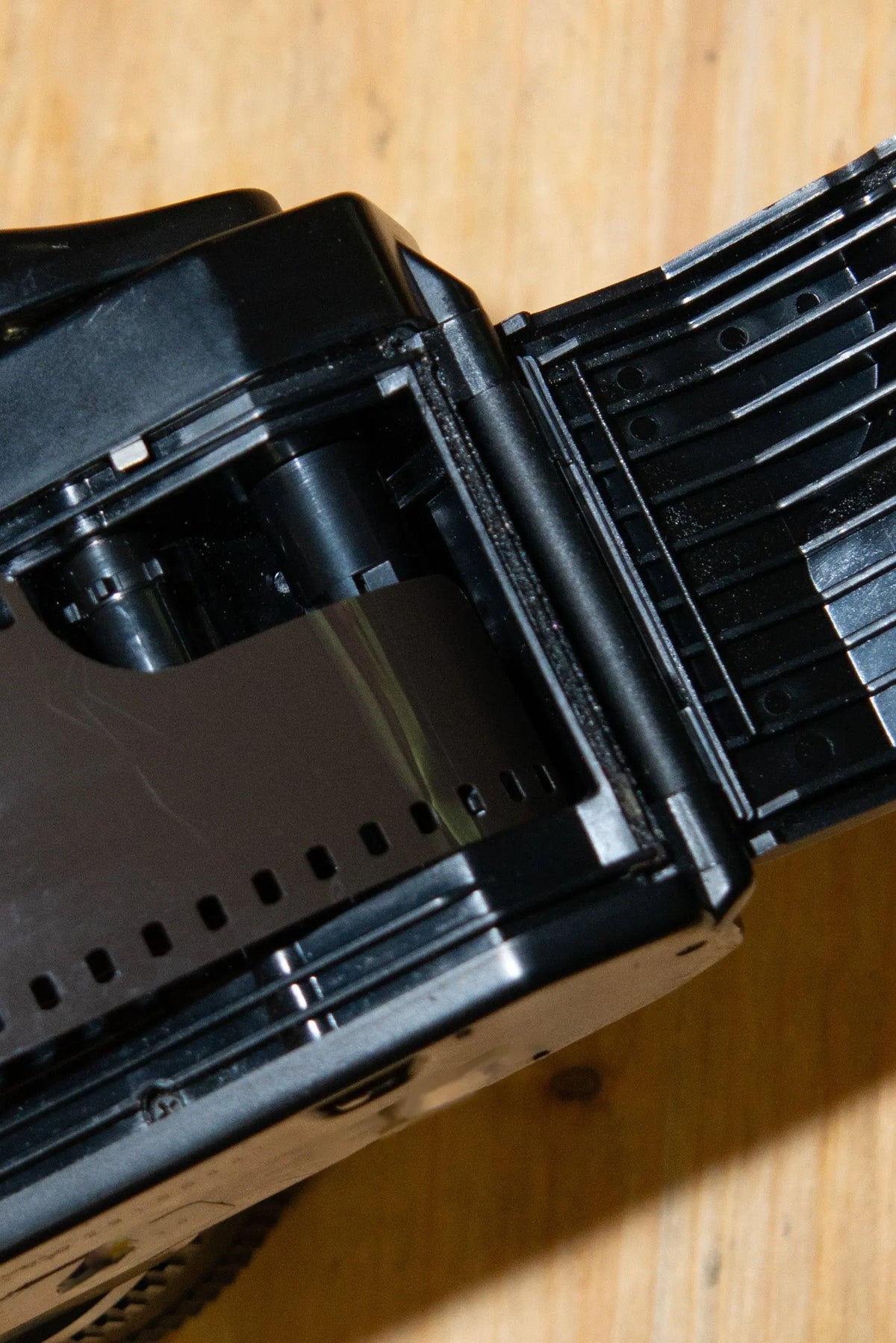

Overlapping frames happen when the film does not advance far enough between exposures. Two or more photographs then occupy the same area of film. Development reveals the overlap but does not cause it: frame spacing is created mechanically inside the camera before the roll reaches the lab.
Common causes in 35mm cameras
- Worn advance gears or slipping take-up spool
- Torn or damaged sprocket holes
- Incorrect loading
- Forcing the lever before completing its movement
- A failing rewind or advance clutch
- Using a camera designed for intentional multiple exposures
Common causes with 120 film
- Loading the start arrow at the wrong position
- Incorrect pressure-plate or format setting
- A worn winding mechanism
- Loose winding or incompatible spool
- Using the wrong red-window sequence on older cameras
What the negative tells us
Look at the distance between frames. If gaps gradually shrink, the winding mechanism may be slipping progressively. Random double exposures can indicate incomplete advancement or an intentional multiple-exposure control. Damage to perforations suggests the sprockets lost their grip.
Why did I receive fewer pictures?
When images overlap, laboratories may deliver one combined scan or select the clearest crop. A 36-exposure roll does not guarantee 36 separate photographs if the camera placed multiple exposures in the same physical area.
Laboratory observation
We sometimes receive a 35mm roll with only 17 or 20 visible image areas even though the camera counter reached 36. The strip shows that the camera did not create 36 separate frames. Counting scans cannot replace examining frame spacing on the negative.
Can the images be saved?
Scanning can crop or interpret overlapping areas, but it cannot separate two exposures that share the same emulsion. The result may still be visually interesting, though it cannot be restored into the two independent photographs originally intended.
FAQ
Can development make frames overlap?
No. Chemical development does not change where the camera placed exposures.
Why do only some frames overlap?
An intermittent slipping advance, torn perforation or incomplete lever movement can affect only part of the roll.
Can a lab scan every overlapping image separately?
Sometimes crops are possible, but shared image information cannot be physically separated.
Should I use the camera again?
Run a test roll or have the transport inspected before using valuable film.
What we look for at Berlin Photo Studio
We begin with the physical negative: density, edge markings, frame spacing, damage pattern and whether the fault repeats. We then compare that evidence with the camera, the film stock and other rolls processed in the same chemistry. A scan alone can hide the difference between exposure, transport and processing faults.
